Codeblu90 — Fire station Section
Published: 2011-05-18 05:10:56 +0000 UTC; Views: 1577; Favourites: 0; Downloads: 0
Redirect to original
Description

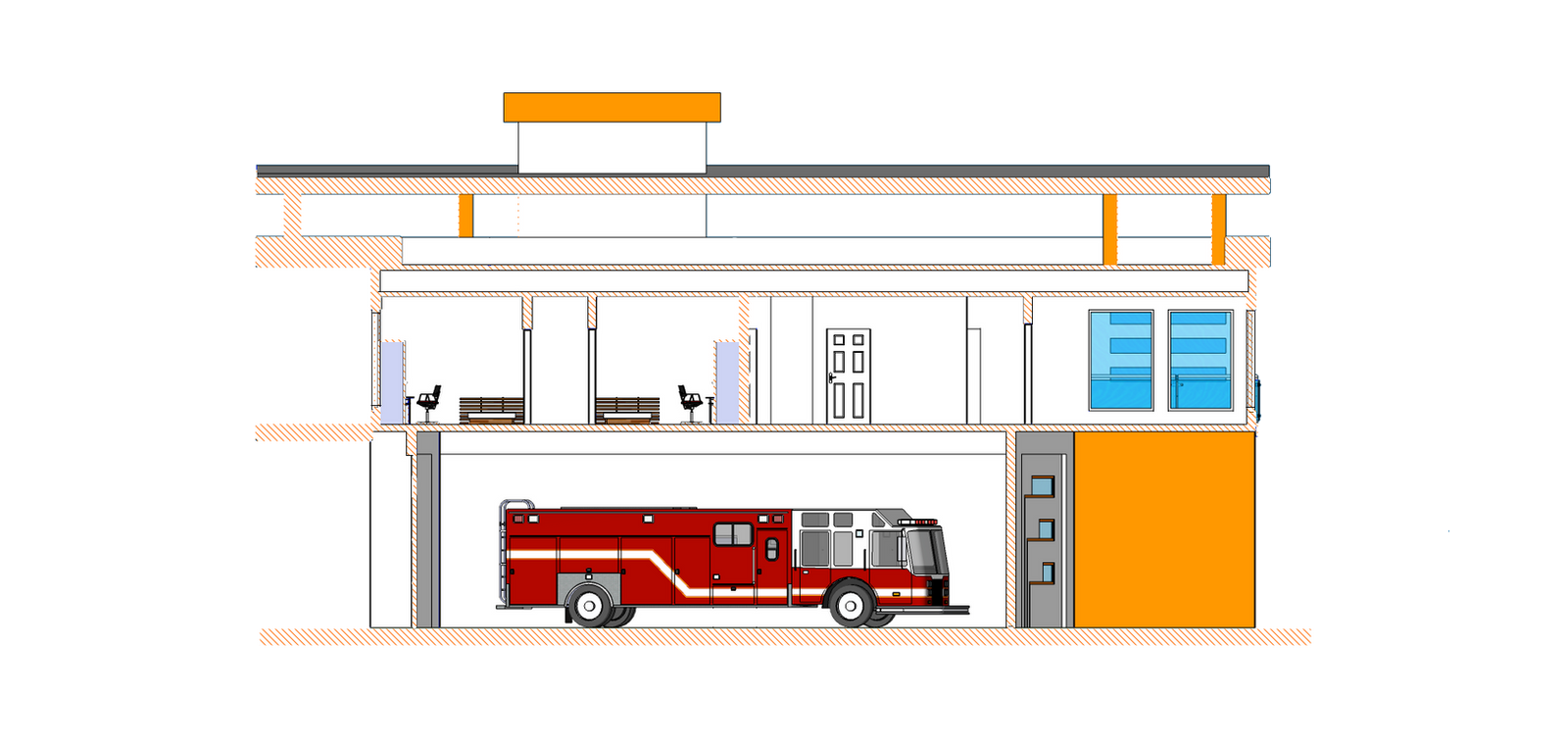

The section to my fire station project, I actually ended up doing it in sketch up unfortunately. I figured out how to slice through my model in Maya, that wasn't the problem, but I couldn't get the lighting and textures to look right and I ran out of time, same happened on my site plan. It turned out pretty good considering it is sketch up though, and sketch up is made for technical drawings like this after all, while Maya... Not so much.Poche was done in Paint.net, not sketch up.
AIASJ 2011 Student Competition drawings.
Design process:
5/4/11:[link]
5/6/11:[link]
5/7/11:[link]
5/11/11:[link]
5/16/11:[link]
Final Drawings:
Site Plan:[link]
Floor Plan:[link]
Section:[link]
East Exterior Elevation:[link]
South Exterior Elevation:[link]
Perspective:[link]
**Final Presentation**:[link]
