Codeblu90 — Harmony Meeting Hall Axon

Published: 2011-02-22 04:08:37 +0000 UTC; Views: 609; Favourites: 0; Downloads: 0
Redirect to original

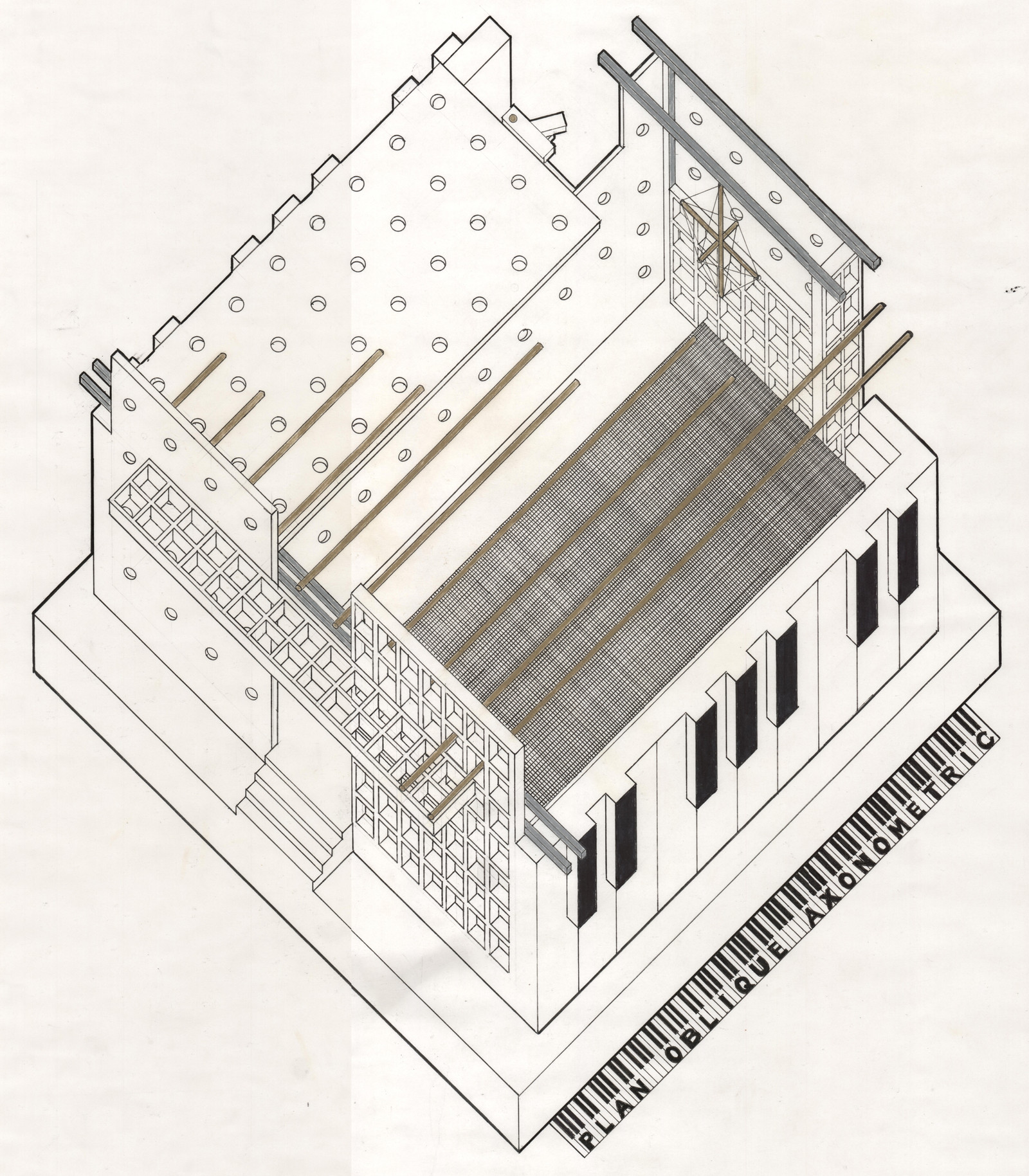

Description An axonometric drawing of the meeting hall I designed for my architecture design class. Its a meeting hall for Democrats and Republicans, the site is in Washington DC. The model is supposed to show harmony, so I choose Music as my concept i.e. harmony between chords and melodies, harmony between the keys that make up individual chords, etc.
The sides represent piano keys, and the rods on top represent the strings on the inside of a piano.

Inking was done with Pigma micron pens, and some koh-I-Noor rapidograph pens.

I spent well over 15 hours on this, and I'm very happy with the way it turned out.

Floor Plan: [link]
Site Plan: [link]
Exterior Elevation: [link]
Section: [link]
Plan Oblique Axonometric: [link]
