Codeblu90 — Meeting Hall Site Plan
Published: 2011-02-28 01:39:28 +0000 UTC; Views: 542; Favourites: 0; Downloads: 0
Redirect to original
Description

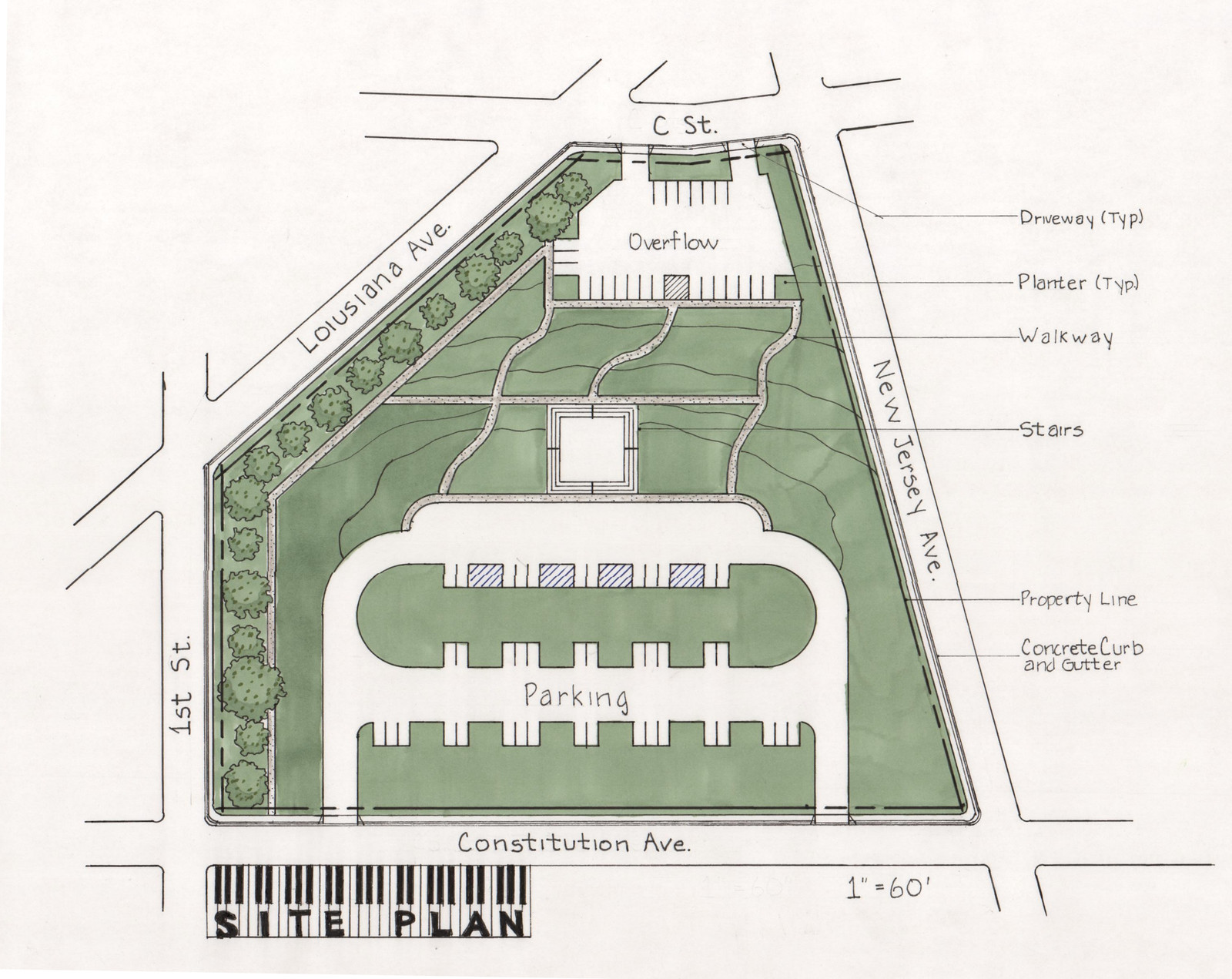

The Site Plan to the meeting hall I designed for my Architecture Design Class.Inked with Pigma Micron and Koh-I-Noor Pens, and colored with Prismacolor Markers.
Floor Plan: [link]
Site Plan: [link]
Exterior Elevation: [link]
Section: [link]
Plan Oblique Axonometric: [link]
