QubixDesign — Thesis Model 02
Published: 2012-04-10 17:10:15 +0000 UTC; Views: 3321; Favourites: 34; Downloads: 0
Redirect to original
Description

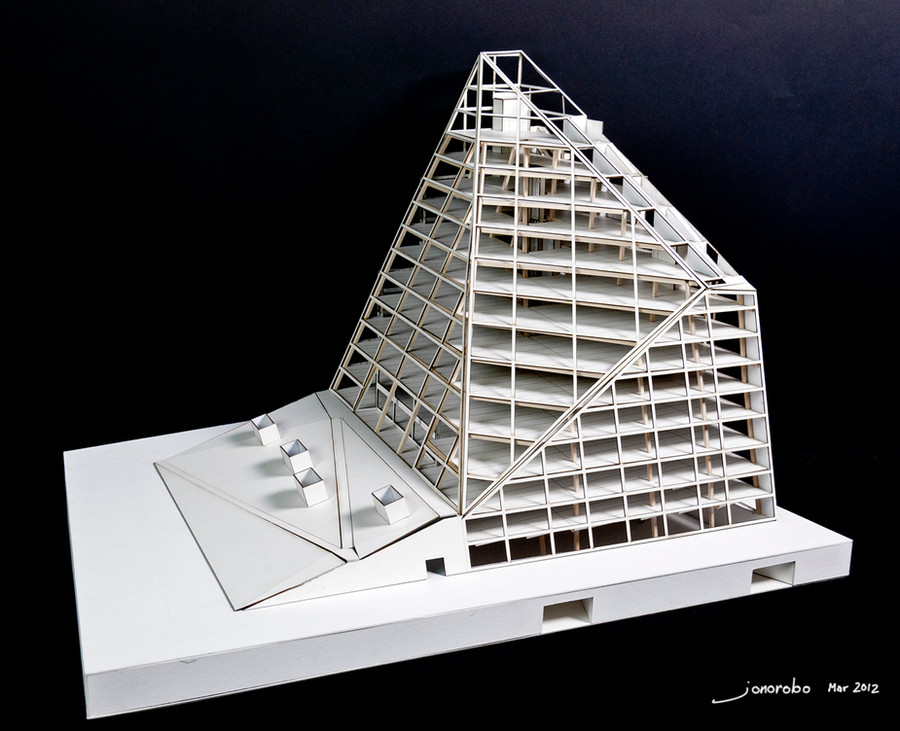

Photos of my final thesis model.The model was built in Sketchup and then I proceeded to make elevations and plans from this 3D model to be used it Adobe Illustrator so that the facade could be cut on a laser cutter.
I ran into numerous problems building the physical model because of its complexity and trying to free-style parts of it while combining it with laser cut pieces. If you notice any odd things, that is why.
The model is built out of card and wood at 1:200. It is quite large with a height of almost 1'6".
Other thesis model photos available here. [link]
Related content
Comments: 10
This is an incredible model! I love your design, so simple and elegant. The facade and columns look amazing! Fantastic work!
👍: 0 ⏩: 1
Thank you very much. Many hours went into making it.
👍: 0 ⏩: 0
Really fucking great..
What are the materials used?
👍: 0 ⏩: 1
Hah, Thanks.
The model is built out of Canson cardboard with the exception of the columns, which is scaled wood.
That's all the materials. I wanted to keep it nice and clean and not use too many materials.
